PRECO-MATIC Switch

PRECO-MATIC Switch

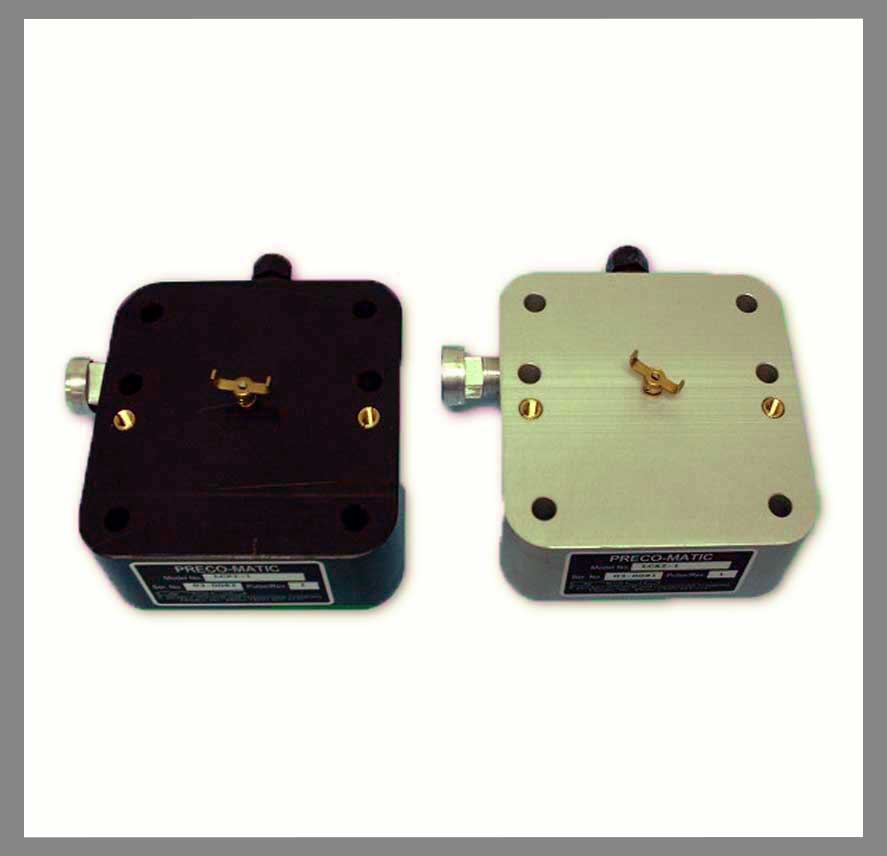

PRECO has developed a Switch Assembly that provides an inexpensive way to obtain a pulsed output from gas meters.

We believe the PRECO-MATIC SWITCH to be of superior quality and lower in price than the competition. To be extremely cost competitive we made the PRECO-MATIC SWITCH housing available in two different materials. The switch housing and magnet rotor are precision machined with CNC machinery to close tolerances. This means that we will be able to deliver consistent quality to you.

  • Easy Installation
  • Operates on very low torque (less than 1/4 inch ounces)
  • Standard with Form C Style Switch
  • Standard switch available with 1 thru 10 pulses per Revolution
  • Single or double independent switch outputs available
  • Ideal for Data Acquisition Systems
  • Simple Design, No Gearing to Wear out
  • Max. Voltage: (100VAC & 100VDC
  • Max. Current AC & DC: (Amps .25) (Watts 3)
  • Type 316 Stainless Steel Rotor Shaft for maximum corrosion resistance
  • UL Listed Switch
  • Average Switch life up to 10 million cycles
  • Operating Temperature: (- 40C to +100C)
  • Average switch life: Up to 10 million Cycles
  • UL Listed Switch
  • Two different housing materials (High Density Polyethelene or 6061 Aluminum
  • Mounts between meter and index or instrument
  • Designed to meet Class 1 Div., 2 Groups A, B, C, and D
  • Vented Housing with Neoprene Rubber Mounting Gasket
  • Type 6061 Aluminum Magnet Rotor
  • Standard Terminal Block with labeling for easy wiring hook-up
